‘L’ Type FinTube

‘L’ Type FinTube

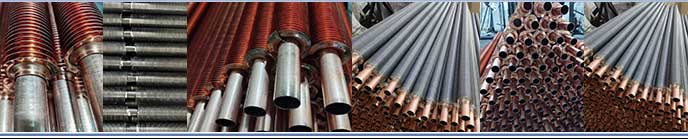

The L type FinTube popularly L – footed Fin tubing offers maximum heat transfer at low-temperature . This is a unique type shaped L which holds Fin rigidly with stand maximum heating cycle and higher velocity air vibrations. L type fintubes are cost controlled compared to G type fin tubes and extruded type fin tubes. These fins are attached to the outer surface of a base tube, which increases the surface area of the tube and enhances its heat transfer performance. L shaped fins have flat top and tapered bottom.

L type fintubes are used most in air cool heat exchange, such as Radiators, condensers and evaporators, also in Industrial process heating and cooling appliances.

L type fintubes are wrapped around base tube with iterations of fin base.

Production Standards/ Mfg. Range

Base Tube Material	Carbon Steel, Stainless Steel, Aluminium, Copper
Base Tube Dimensions	18 mm to 38.20 mm Outer Diameter
Base Tube Thickness	From 1.5 mm Thickness
Base Tube Length	up to 15,000 mm
Fin Material	Alu, Cu
Fin thickness	0.45 to 0.35 mm
Fin Density	6 to 11  Fins Per Inch
Fin Height	8 mm to 15 mm
Bare Ends	As per customer standard
Mfg. Capacity	20,000 Mtr per month

Fin tubes can be supplied with EN- 10204, EN 3.1 & EN 3.2 certifications. We provide inspection from reputed third-party agencies on demand.
